Future Modules

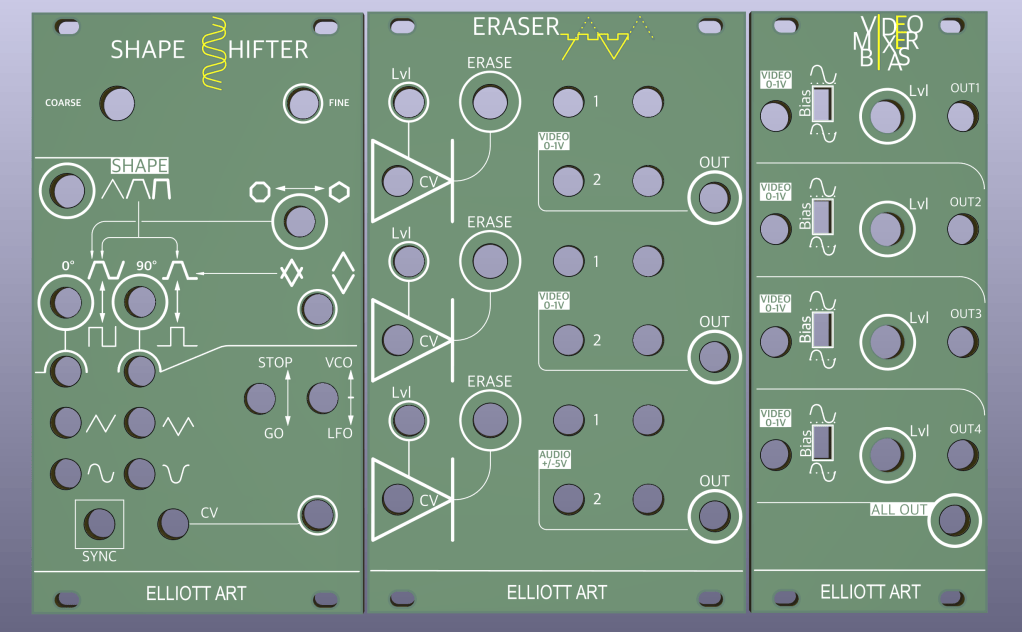

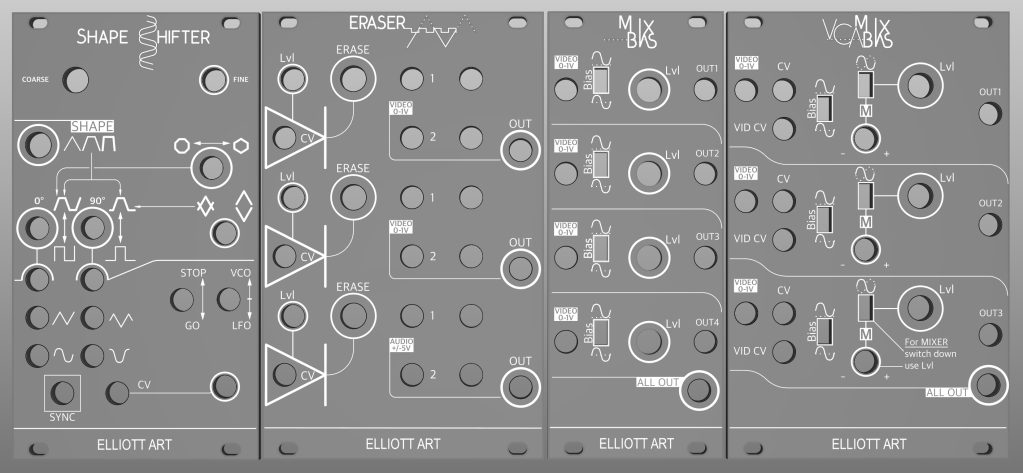

The SHAPE SHIFTER is a powerful analogue audio instrument and lissajous figure oscilloscope generator. Using SYNC you can create circles, squares, rhombus, hexagons, octagons with amplification allowing to play with scale & the proportion of shape. LFO has a stop function also mid frequency and high frequency quality VCO. Connector pot control outputs the 90° splitting the shape also overlapping creating visual effects with powerful filter sound especially accompanied with CV creating complex modulating shapes with swirling audio.
ERASER allows audio/video signals to pass through. Then erases the signal from top down. This can be voltage controlled, then another signal can be added creating an array of visual effects. All signals have pots to allow scale adjustment. Designed for video synthesis and oscilloscopes. It has two video channels and one audio to experiment with horizontal vertical and an audio experience.
VIDEO MIXER BIAS is a four channel 0-1V video signal mixer with a bias switches converting unipolar to bipolar adjustment useful for many applications on your video system such as: Symmetrical Geometry & Positioning / Pattern Inversion & Solarization / True Through-Zero Modulation etc…
FOR YOUR INTEREST IN A FUTURE modules, PLEASE FILL IN THE FORM BELOW. PROVIDE YOUR ADDRESS, TELEPHONE NUMBER AND EMAIL ADDRESS & I’ll add you to my list.
Rotator (past project)
Function
The Rotator is a powerful analogue processor that creates a three dimensional image on any XY oscilloscope or vector monitor. You can input Eurorack audio and/or Video frequencies to make your image, patch 2 Quadrature LFO modules to rotate at your desired speed creating an array of movement and visual effects……
Features:
Module Dimensions: 128mm / 71mm / 40mm
Inputs: X Y & Z with attenuation knobs
CV in: Quadrature 0° 90° / 0° 90° (+/- 2V) recommend: [Doepfer A-143-9 QLFO Voltage Controlled Quadrature LFO ]
Outputs BNC & 3.5mm jack
Converter: 0-1V converted to +/-5V this can then be then patched into X Y & Z Inputs
Audio Sync Patch
Rutt Etra Patch
For available modules: Syntonie Entrée (brightness contrast), VU007B (sync) & Rampes is a (ramp generator that creates vertical/horizontal outputs for video screen.
